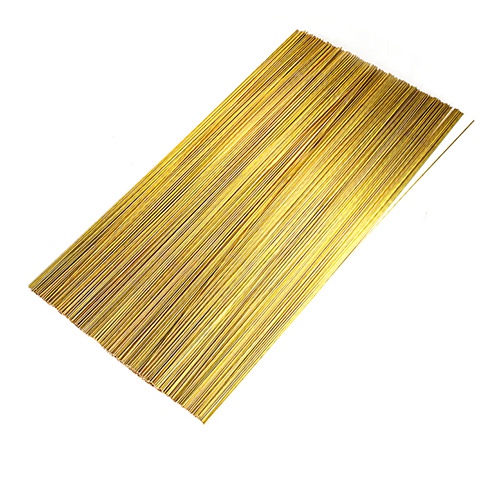

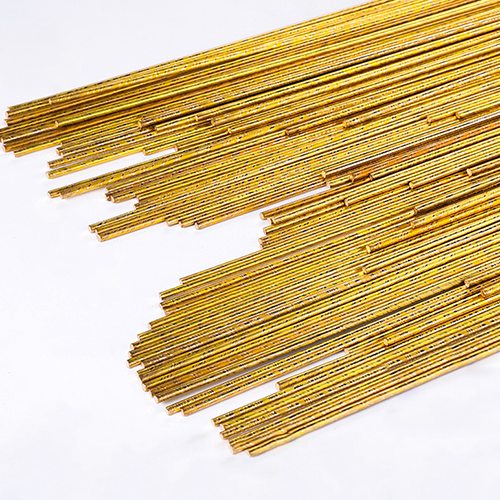

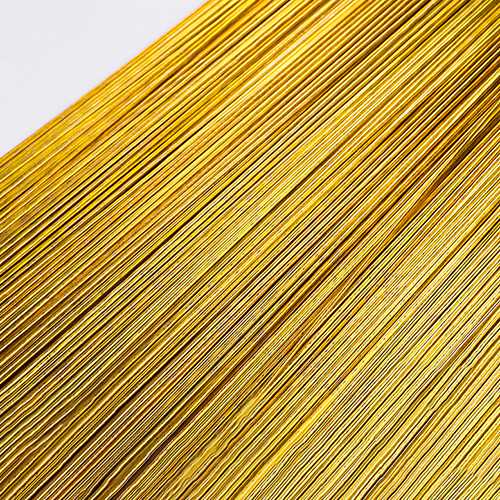

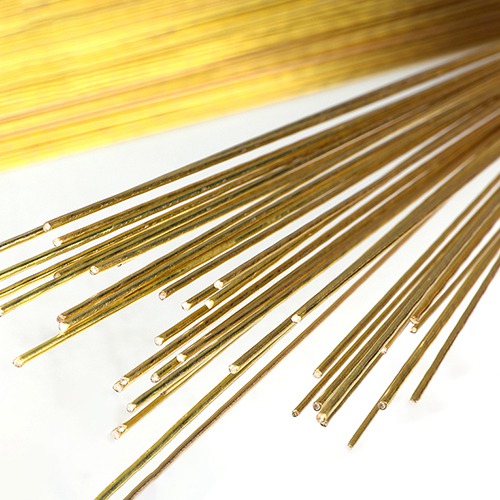

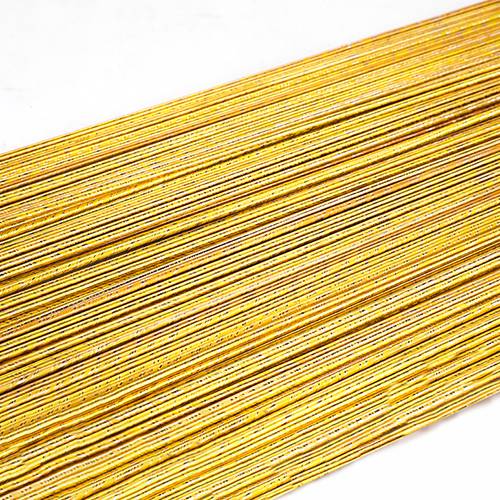

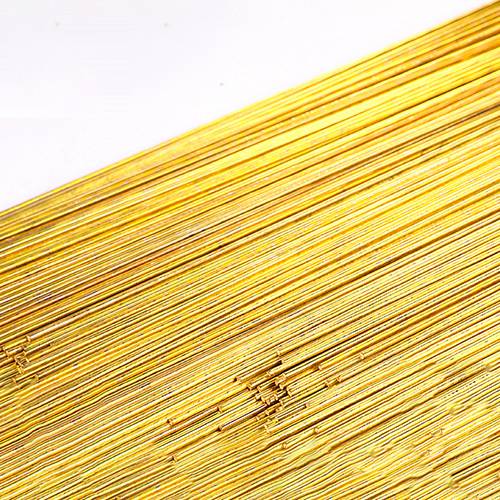

A specialized rod for brazing is brass flux brazing rod made specifically for joining brass and other metals. These China Brass Flux Brazing Rods incorporate flux, which is a substance that allows molten brass to flow easily and stick on surfaces during brazing. Copper-phosphorus solder is made of copper and zinc alloy. It has good fluidity and can be well used in contact brazing, flame brazing, high-frequency brazing and furnace brazing. Wetting ability of the solder is enhanced. , thereby improving strength and toughness, while also reducing the melting point. The flame method as well as high-frequency resistance among others are types of brazeable joints mainly used for this type of solder.
| BrazingAlloys | AWS | Chemical Composition（%） | Solidus | Liquidus | Main Uses | |||||||
| Ag | Cu | Zn | Sn | Si | Other | F | ℃ | F | ℃ | |||
| BCu | BCu-1 | / | 100 | / | / | / | / | 1981 | 1082 | 1981 | 1082 | Suitable for furnace brazing of steel, stainless steel and nickel-based alloys |
| BCu58Zn | / | / | 58 | / | 38 | / | Mn：4 | 1616 | 880 | 1668 | 909 | Mainly used for brazing of hard alloy cutter |
| BCu60Zn | / | / | 60 | / | 39 | 1 | Si：0.25 | 1634 | 890 | 1661 | 905 | Mainly used for brazing ferrous metals, nickel-based alloys and Cu-Ni alloys; it has good fluidity. |
| BCu58ZnFe | BCuZn-C | / | 58 | / | 40.2 | 1 | Fe：0.8 | 1670 | 910 | 1749 | 954 | |
| BCu48ZnNi | BCuZn-D | / | 48 | / | 41.8 | / | Ni：1 Si：0.2 | 1720 | 938 | 1799 | 982 | |
In ordinary flame welding, brass solder can be used for various purposes. It is mainly utilized within the areas of refrigeration, air conditioning, plumbing and electrical industries. We could create all types of formulas or partner with R&D and customization to save costs and increase efficiency in your production. In particular please contact the technical department if needed.
Enhanced Wetting: Brass flux brazing rods are made with flux, a chemical compound that increases the ability of the-solderled metals (brass) to work well together. The flux reduces the surface tension thus making it easier for molten brass to cover joint area evenly and completely ensuring strong bond.
Oxide Removal: In addition, there is the function of oxides and base metal contamination on base metals by the flux used in brass flux brazing rods during brazing processes. This means that proper bonding between metals can be impaired by oxides which leads to weakening of joints. It also creates an opportunity for reaction between this oxide and the filler metal thus leading to its connection with clean metallic surfaces.
Prevents Oxidation: Brass flux braze welding wires also help prevent oxidation of both the filler metal and base metals as they are being heated. Oxidation happens when metals come into contact with air at high temperatures, ultimately resulting in weak bonds and low quality joints. The use of such materials ensures that an oxidizing atmosphere does not develop around a soldered joint thereby preventing oxygen from contacting any surfaces, which might cause oxidation.
Reduces Flux Residue: To make sure there is no excessive residues formed after brazing process; these products have been designed so that they yield least post-braze residues on work piece interfacial regions. Excess amount of this material may interfere with visual appearance as well as mechanical properties of a braze joint. Thus, it should be noted that during soldering activities its presence must just provide coverage while leaving behind uniformly smooth solder traces.
Supports Capillary Action: Functionally, capillary action is promoted by such a substance causing molten brass to go through small openings or holes existing between those two metallic plates in contact each other as per their dimensions. Therefore, this allows for complete penetration throughout any joint region which ultimately creates strong connections without any leekages.
Enhanced Brazing Quality: The use of brass flux brazing rods ensures that the resultant brazed joints have lesser voids, no intermetallic formations and a uniform distribution of filler metals in them thus improving their quality. The flux can be relied upon for consistent results while ensuring there are no defects hence high-quality end products.
Versatility: These types of metals can be used to connect numerous materials including copper, bronze, steel, stainless steel among others thus making them quite flexible. It is this ability that makes them applicable in different fields which include; plumbing, automotive, HVAC, metal fabrication and electronics.
Convenience: Brass flux brazing rods are highly convenient to use as they come pre-covered with a special resinous material called “flux”. This eliminates the need to apply additional quantities of any other substances as it saves time and costs involved during this process. As a result multiple consumables normally required for many soldering activities could hardly be available thus leading to these products simplifying such applications by reducing their various manufacturing stages thereby cutting on cost and time spent.
The main function of the brass flux brazing rod is to provide the necessary flux and brazing materials to simplify the brazing process. Flux helps remove oxides and impurities from the metal surface, allowing the brazing material to better wet the base metal and improve the quality of the weld.
The advantages of using a brass flux soldering rod are its convenience and efficiency. Since the flux and soldering material have been combined, users do not need to apply flux separately, thus simplifying the operation process and improving work efficiency.
Answer: Brass flux brazing rod is suitable for brazing various brass materials, such as brass tubes, brass plates, etc. It is particularly suitable for scenarios where brazing tasks need to be completed quickly, efficiently and with high quality.
When using brass flux brazing rods, you need to pay attention to controlling the heating temperature and time to avoid excessively high or low temperatures affecting the brazing quality. Also, make sure the joint surface is clean so that the flux can work best.
Generally speaking, brass flux brazing rods melt and fill the joint during the brazing process and therefore cannot be reused. A new brazing rod is required for each brazing operation.
Brass flux soldering rods should be stored in a dry, ventilated place to avoid moisture and contamination. At the same time, avoid direct sunlight and high temperature environments to maintain stable performance.
Compared with other brazing materials, the biggest difference between brass flux brazing rods is the integrated flux, which makes the brazing process easier. In addition, its composition and properties may vary from specific products to meet different brazing needs.
