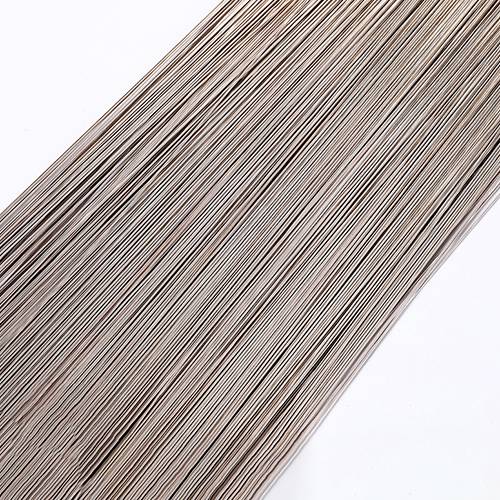

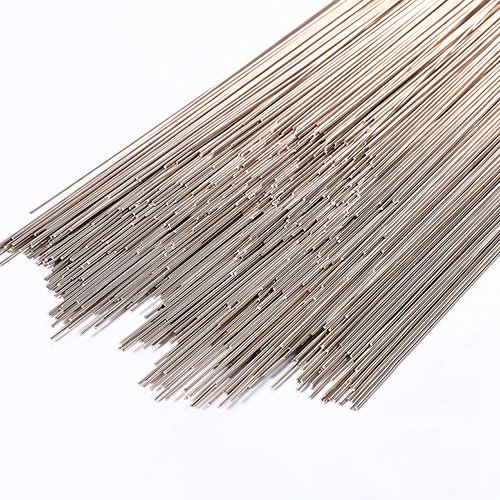

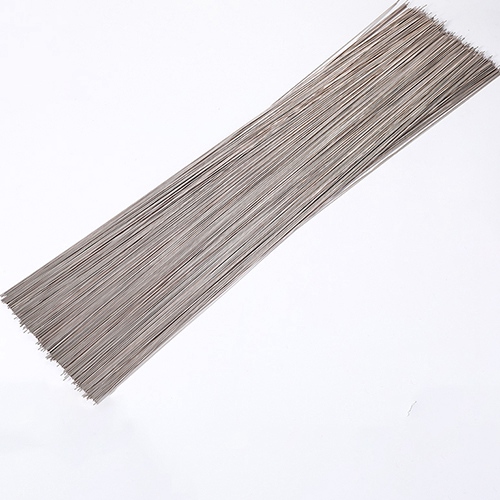

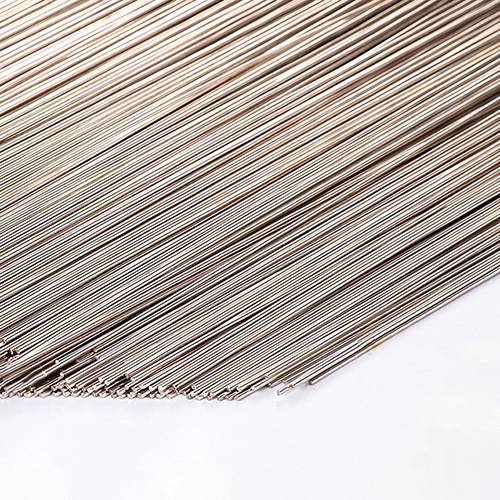

A silver copper phosphorus electrode is a specialized welding component crafted from a combination of silver, copper, and phosphorus. This electrode is designed for precise and efficient welding applications, offering a unique blend of conductivity, strength, and corrosion resistance. Silver-based solder has excellent process performance, low melting point, good wettability and gap-filling ability, high strength, good plasticity, electrical conductivity and excellent corrosion resistance. It can be used to braze aluminum and magnesium. All ferrous metals and non-ferrous metals except other low melting point metals, it has a wide range of applications. The solder is available in the form of strips, ribbons, wires, rings, pastes, etc., as well as preforms, "composite" products and flux-cored wire series. And can cooperate with customized research and development of new formulas.
●Cadmium-Free Silver-Based Solder
BrazingAlloys | AWS | Chemical Composition(%) | Solidus | Liquidus | Main Uses | |||||
Ag | Cu | Zn | Sn | F | ℃ | F | ℃ | |||
BAg5CuZn | 5 | 58 | 37 | / | 1545 | 840 | 1615 | 880 | Suitable for nickel-chromium alloy resistance components, brazing and heat treatment can be performed at the same time. Suitable for copper-based alloys such as brazing/cyanide hardening by changing instruments or joining steel parts. Suitable for steel, brazing and heat treatment at the same time. Low silver solder for ferrous and non-ferrous metals. | |
BAg7CuSn | 7 | 85 | / | 8 | 1225 | 665 | 1805 | 985 | ||
BAg10CuZn | 10 | 83 | 37 | / | 1499 | 815 | 1562 | 850 | ||
BAg15CuZnSn | 15 | 47 | 37 | 1 | 1364 | 740 | 1526 | 850 | ||
BAg18CuZnSn | 18 | 47.5 | 33 | 1.5 | 1436 | 780 | 1490 | 830 | ||
BAg20CuZn | 20 | 45 | 35 | / | 1319 | 715 | 1499 | 815 | ||
BAg25CuZn | 25 | 41 | 32 | / | 1292 | 700 | 1472 | 800 | ||
BAg35CuZn | BAg-35 | 35 | 32 | 33 | / | 1265 | 685 | 1390 | 754 | |
BAg38CuZnSn | 38 | 32 | 28 | 2 | 1200 | 650 | 1330 | 720 | ||
BAg40CuZn | 40 | 30 | 30 | / | 1245 | 675 | 1340 | 725 | ||
BAg40CuZnSne | BAg-28 | 40 | 30 | 28 | 2 | 1200 | 650 | 1310 | 710 | |
BAg45CuZn | BAg-5 | 45 | 30 | 25 | / | 1225 | 665 | 1370 | 745 | |
BAg45CuZnSn | 45 | 27 | 25 | 3 | 1185 | 640 | 1260 | 680 | ||
BAg50CuZnSn | 50 | 20 | 28 | 2 | 1220 | 660 | 1305 | 705 | ||
BAg56CuZnSn | BAg-13a | 56 | 42 | / | 2 | 1420 | 770 | 1640 | 895 | |
BAg60CuZn | 60 | 25 | 15 | / | 1245 | 675 | 1325 | 720 | ||
BAg25CuZnSn | BAg-37 | 25 | 40 | 33 | 2 | 1270 | 690 | 1435 | 780 | It has lower melting point, high strength, good brazing process and good overall joint performance. It can braze copper and copper alloys, steel and stainless steel as well as quenched and tempered steel with lower brazing temperature. |
BAg30CuZnSn | 30 | 36 | 25 | 2 | 1202 | 650 | 1346 | 750 | ||
BAg34CuZnSn | 34 | 36.5 | 27 | 2.5 | 1166 | 630 | 1346 | 730 | ||
BAg40CuZnSn | BAg-28 | 40 | 30 | 28 | 2 | 1173 | 634 | 1364 | 740 | |
BAg45CuZn | BAg-5 | 45 | 30 | 25 | / | 1229 | 665 | 1373 | 745 | |
BAg45CuZnSn | BAg-36 | 45 | 27 | 25 | 3 | 1184 | 640 | 1256 | 680 | |
BAg50CuZn | 50 | 25 | 25 | / | 1274 | 690 | 1427 | 775 | ||
BAg50Cu | BVAg-6b | 50 | 50 | / | / | 1435 | 780 | 1600 | 870 | |
BAg56CuZnSn | BVAg-7 | 56 | 23 | 16 | 5 | 1144 | 618 | 1205 | 652 | |
BAg72Cu | BVAg-8 | 72 | 28 | / | / | 1434 | 779 | 1434 | 779 |
●Cadmium-Containing Silver-Based Solder
BrazingAlloys | AWS | Chemical Composition(%) | Solidus | Liquidus | Main Uses | ||||||
Ag | Cu | Zn | Cd | Ni | F | ℃ | F | ℃ | |||
BAg18CuZnCd | 18 | 39 | 28 | 15 | / | 1184 | 640 | 1373 | 745 | Used for low-cost brazing of copper and copper alloys, steel and stainless steel. | |
BAg20CuZnCd | 20 | 40 | 25 | 15 | / | 1121 | 605 | 1409 | 765 | ||
BAg25CuZnCd | BAg-33 | 25 | 30 | 27.5 | 17.5 | / | 1124 | 607 | 1259 | 682 | Mainly used for brazing ferrous metals, nickel-based alloys and Cu-Ni alloys; it has good fluidity. |
BAg30CuZnCd | BAg-2a | 40 | 28 | 21 | 21 | / | 1112 | 600 | 1274 | 690 | |
BAg35CuZnCd | BAg-2 | 45 | 26 | 21 | 18 | / | 1121 | 605 | 1292 | 700 | |
BAg40CuZnCd | 45 | 16.8 | 17.5 | 25.5 | 0.2 | 1103 | 595 | 1121 | 605 | ||
BAg45CuZnCd | BAg-1 | 50 | 15 | 16 | 24 | / | 1124 | 607 | 1146 | 619 | |
BAg50CuZnCd | BAg-3 | 50 | 16.5 | 14.5 | 16 | 3 | 1169 | 632 | 1270 | 688 |
Brass solder has a wide range of applications and is commonly used in ordinary flame welding. It is mainly used in refrigeration, air conditioning, plumbing and electrical industries. We can produce all kinds of formulas, and can also cooperate with R&D and customization to reduce costs and increase efficiency for your production. Specifically Please contact the technical department if required.
Silver Copper Phosphorus Electrodes have high thermal and electrical conductivity, corrosion resistant properties and high bonding properties with little effort in using flux. Such positive qualities are very applicable in the facets of construction like HVAC, refrigeration, and plumbing where a lot of emphasis is placed on durability and efficiency.
The Silver Copper Phosphorus Electrodes find many applications in air conditioning, refrigeration, plumbing, electrical and automotive industries where high precision is essential.
Yes, sustainability is incorporated in the production of our electrodes. The used materials are recyclable and we adopt eco-friendly practices so as to minimize waste and reduce carbon emissions.
Throughout the course of the manufacturing processes, we follow quality standards and each of the defects is negligible. Our products are tested for durability, conductivity, and strength of bonding to ensure they are in compliance with the standards of the industry and customers needs.
